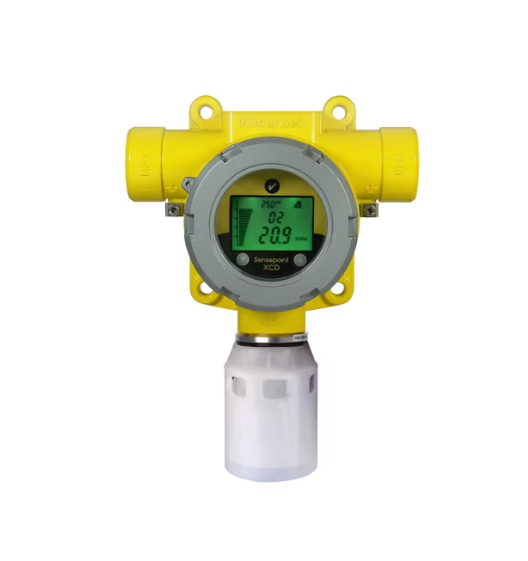

霍尼韦尔SPXCD可燃气体、有毒气体和氧气探测器，fixed gas detectors，Sensepoint XCD
变送器可对潜在爆炸性危险环境(包括室内和室外)中的可燃气体、有毒气体和氧气危害提供全面监控。 •
规格一览 • 输入电压范围:16 至 32 VDC(标称电压为 24 VDC) • 通讯:RS485、MODBUS RTU • 认证温度范围:40° 至 +149°F(-40° 至 +65°C)
产品概述
Sensepoint XCD 配备有毒气体和氧气传感器，目前已具有远程监控功能。
该产品的远程监控功能在使用中具有优异的灵活性，可用于难以触及的位置或需要将变送器和传感器分开放置的区域。
远程有毒气体和氧气传感器最远可安装在距离变送器 100 英尺（30 米）远的位置，即使在难以探测、富有挑战性的环境中
（包括应用探测点位于不易触及或无法看到探测器的地点——比如在很高或很低的隐蔽区域，或正被监控的房屋的外部），Sensepoint XCD 也能提供强大的监控解决方案。
Sensepoint XCD 易于使用。
将传感器插入变送器的底部即可，随后变送器会根据需要自动进行配置。用户无需打开设备，仅使用 LCD 和磁性开关即可更改探测器的操作。
实现了单人非侵入式操作，并减少了日常的维护时间和成本。

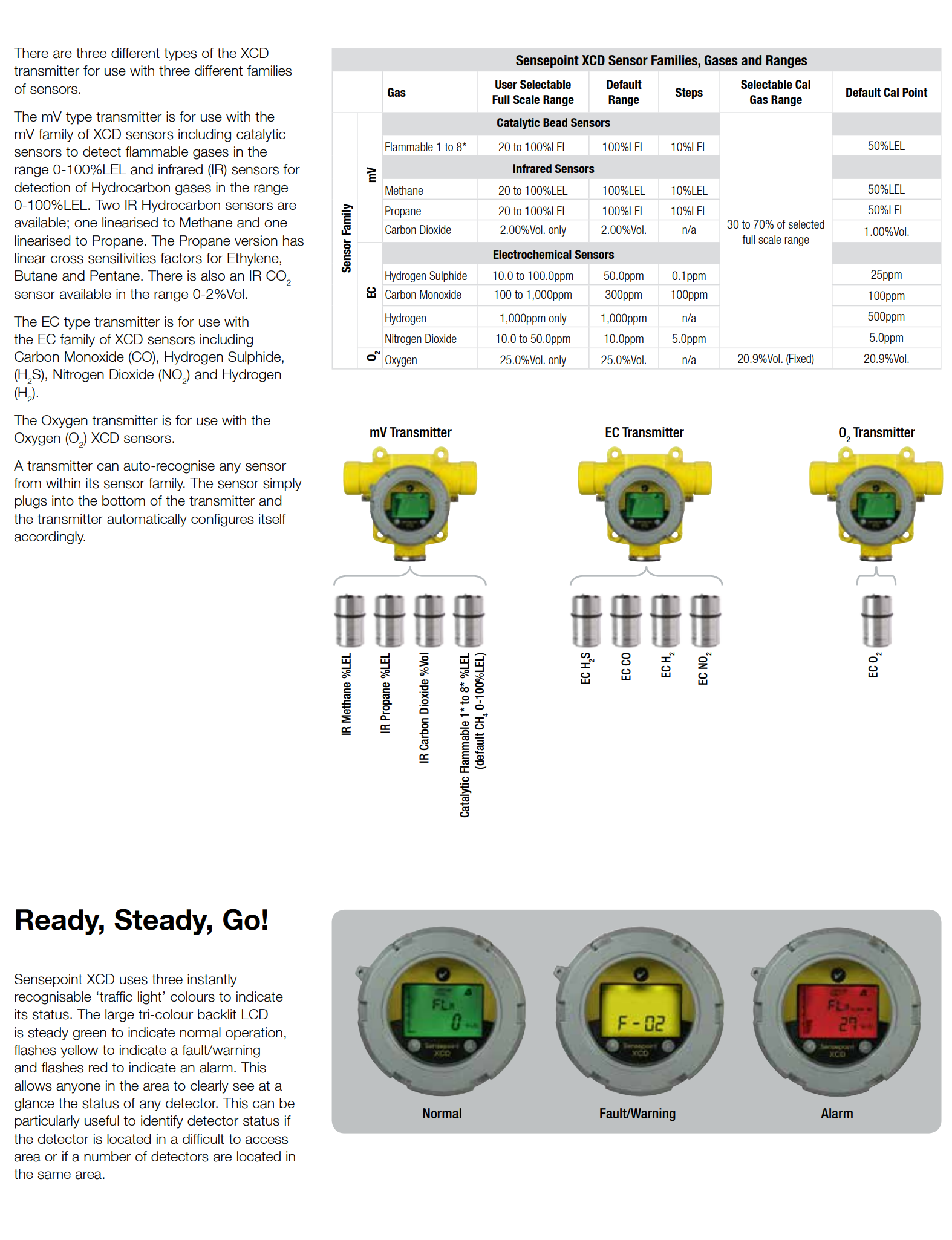

即使在较远的距离，三色背光液晶显示器也可清晰、一目了然地显示设备状态。
稳定的绿色背光指示正常运行状态，闪烁的黄色背光指示故障状态，而闪烁的红色背光则指示报警状态。
提供的所有探测器都经过预先配置，其中包括两个可编程报警继电器、一个可编程故障继电器和工业标准级 4-20 毫安输出（可选择漏型或源型），以及 MODBUS 通讯接口。
使用变送器的液晶显示器和非侵入式磁性开关即可调节级别、量程、继电器动作、报警设定值以及探测器电子标签号码。
调节过程会自动抑制输出，从而减小维护过程中控制面板发生误报的风险。
其他特点和优点：
一体式气体监控解决方案
• 提供可燃气体（催化或红外）、有毒气体和氧气版本
• 适合于全新或改造应用以及室内外应用
• 可选不锈钢或铝制防爆外壳
• 以 IP66 为标准
成熟可靠的传感器技术
• SurecellTM 电化学传感器
• 防毒红外传感器
• 抗毒催化珠传感器
• 长寿命传感器
全球认证
• 美国和拉丁美洲、欧洲、加拿大以及亚洲
• 符合 UL、INMETRO、ATEX、IECEx、CSA、KTL、PA、GB 和 CCCF 标准
易于使用
• 用户友好型直观三色背光显示器，可显示数字、柱状图和图标
• 可使用磁性开关进行完全配置
• 可选择远程传感器安装方式
• 可选漏型或源型 4-20mA 输出
• 维护过程中可自动抑制输出
• MODBUS 通讯系统可实现远程诊断/配置
具有成本效益
• 通用变送器平台
• 所需培训最少
• 备件减少
• 非侵入式单人操作
• 插入式传感器可更换
• MODBUS 多点布置选择可节省布线
安装简单
• 可移除插入式显示模块来访问终端区
• 一体式安装支架
• 2 x M20 或 ¾” NPT 电缆/导管接口
• 可拆卸插头/插座式接线端子，
• 可切换漏型/源型输出，以适合最佳接线布局
• 一体式安装板可连接至表面、水平或垂直管道
05704-N-0101 SYS57 4CH CAT CTRL CD FA QD 继电器
05704-N-0105 SYS57 4CH CNRL CD FA FIRE HX QD RLY
SPXCDALMB1 Sensepoint XCD，二氧化碳，红外线，0-2%体积百分比，铝合金，M20入口
SPXCDALMB1M XCD 二氧化碳红外 0-2%VOL LM25 MODBUS
SPXCDALMB2 XCD气体探测器，4到20 mA输出，ATEX IEC Ex亚洲认证，2个M20接口，涂装LM25，包括红外二氧化碳传感器组件0到5.0% vv，包括尼龙防风雨保护。
SPXCDALMB2M XCD气体探测器，4到20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，包括红外二氧化碳传感器组件0到5.0% vv，包括尼龙天气保护。
SPXCDALMCX 气体传感器：一氧化碳：0到300ppm：LM25：M20：ATEX：IECEx：KT：PA：GB
输入：SPXCDALMCXM XCD气体探测器，4-20 mA & Modbus输出，ATEX IECEx亚洲认证，2个M20接口，喷漆LM25，包括一氧化碳EC传感器模块0-300ppm，
用户可选的FSD在100到1000ppm之间（100 ppm分辨率），包括尼龙防风雨保护。
SPXCDALMFX 感点 XCD 气体探测器
SPXCDALMFXM XCD气体探测器，4到20毫安和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，包括催化传感器组件0到100%LEL，
用户可选择的FSD在20%到100%LEL之间（10%LEL分辨率），包括尼龙防风雨保护。
SPXCDALMG1 Sensepoint XCD，氢气，0-1000ppm，铝合金，M20入口
SPXCDALMG1M XCD气体探测器，4到20毫安和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，
包括氢EC传感器模块0到1000ppm，包括尼龙天气保护。
输入：SPXCDALMHX XCD气体探测器：4到20毫安输出：ATEX IEC Ex亚洲认证：2个M20接口：涂装LM25：
包括硫化氢EC传感器模块0到50ppm：用户可选FSD在10到100ppm之间（1 ppm分辨率）：包括尼龙天气保护。
输入：SPXCDALMHXM XCD气体检测仪，4-20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20接口，LM25喷漆，
包括0-50ppm的硫化氢EC传感器模块，用户可选的FSD在10到100ppm之间（1 ppm分辨率），包括尼龙防风雨保护。
输入：SPXCDALMNX XCD气体探测器，4到20 mA输出，ATEX IEC Ex亚洲认证，2个M20接口，涂装LM25，
包含二氧化氮EC传感器模块0到10ppm，用户可选FSD在10到50ppm之间（5 ppm分辨率），包含尼龙天气保护。
输入：SPXCDALMNXM XCD气体探测器，4-20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20接口，喷漆LM25，
包括一氧化氮EC传感器模块0到10ppm，用户可选的FSD在10到50ppm之间（5 ppm分辨率），包括尼龙防风雨保护。
SPXCDALMO1 ATEX XCD O2 25.0%体积 LM25 M20
SPXCDALMO1M XCD气体探测器，4到20毫安和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，
涂装LM25，包括氧气EC传感器组件0到25% vv，包括尼龙天气保护。
输入：SPXCDALMPX XCD 丙烷 IR 0-100%LEL LM25
输入：SPXCDALMPXM XCD气体探测器，4-20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20接口，
喷漆LM25，包括红外丙烷传感器模块0-100% LEL，用户可选择的FSD在20%到100%LEL之间（10%LEL分辨率），包括尼龙防风雨保护。
输入：SPXCDALMRX 三重红外火焰探测器 适用于ATEX 222区；FM 3611 1, 2&3类 Div2 EN54-10（高灵敏度）证书（待定*）FM3260批准（待定*）。红色外壳。
SPXCDALMRXM XCD CH4 IR 0-100%LEL LM25 MODBUS 登录
SPXCDALMTXF Sensepoint XCD Flam和IR Tx，ATEX，LM2 登录
SPXCDALMTXFM XCD IR & 燃烧发射器（无传感器），4到20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，包括尼龙防风雨保护。
SPXCDALMTXO XCD O2 传送器（无传感器），4到20 mA输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，包括尼龙防风雨保护。
SPXCDALMTXT XCD 毒性发射器（无传感器），4到20 mA输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，包括尼龙防风雨保护。
SPXCDALMTXTM XCD 毒性发射器（无传感器），4到20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装LM25，包括尼龙防风雨保护。
SPXCDASMB1 气体传感器：二氧化碳：316不锈钢：M20：ATEX：IECEX：AP
SPXCDASMB1M XCD气体探测器，4到20毫安和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，涂装316不锈钢，包括红外二氧化碳传感器组件0到2.0% vv，包括尼龙天气保护。
SPXCDASMB2 XCD气体探测器，4到20 mA输出，ATEX IEC Ex亚洲认证，2个M20接口，涂装316不锈钢，包括红外二氧化碳传感器组件0到5.0% vv，包括尼龙天气保护。
SPXCDASMCX XCD 防爆件 M20 316不锈钢 二氧化碳 ppm
SPXCDASMCXM XCD气体探测器，4-20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20接口，316SS涂装，包含一氧化碳EC传感器组件0-300ppm，
用户可选FSD在100到1000ppm之间（100 ppm分辨率），包含尼龙防风雨保护。
SPXCDASMFX 气体传感器：0到100%；等级：316不锈钢；M20；ATEX；IECEX；AP
SPXCDASMFXM XCD气体探测器，4-20 mA和Modbus输出，ATEX IEC Ex亚洲认证，2个M20入口，316SS涂装，包括催化传感器筒0到100%LEL，
用户可选择20%到100%LEL之间的FSD（10%LEL分辨率），包括尼龙防风雨保护。
SPXCDASMG1 Gas Sensor: H2: 0-1000ppm: 316SS: M20: ATEX: IECEX: AP SIGN IN
SPXCDASMG1M XCD Gas Detector, 4 to 20 mA and Modbus output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS,
includes hydrogen EC sensor cartridge 0 to 1000ppm,
includes nylon weather protection SIGN IN
SPXCDASMHX 1CD ATEXIECEXAP M20 316SS H2S PPM SIGN IN
SPXCDASMHXM XCD Gas Detector, 4-20 mA & Modbus output, ATEXIECExAsian approvals, 2xM20 entries,
painted 316SS, includes hydrogen sulfide EC sensor cartridge 0 to 50ppm,
user selectable FSD between 10 and 100ppm (1 ppm resolution), inc. nylon weather protection SIGN IN
SPXCDASMNX XCD Gas Detector, 4 to 20 mA output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS, includes nitrogen dioxide EC sensor cartridge 0 to 10ppm,
user selectable FSD between 10 and 50ppm (5 ppm resolution), includes nylon weather protection
SPXCDASMNXM XCD Gas Detector, 4-20 mA and Modbus output, ATEXIECExAsian approvals, 2xM20 entries, painted 316SS,
includes nitrogen dioxide EC sensor cartridge 0-10ppm, user selectable FSD between 10 and 50ppm (5 ppm resolution), inc. nylon weather protection
SPXCDASMO1 Gas Sensor: O2: 0 to 25%: 316SS: M20: ATEX: IECEX: AP SIGN IN
SPXCDASMO1M XCD Gas Detector, 4 to 20 mA and Modbus output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS,
includes oxygen EC sensor cartridge 0 to 25% vv,
includes nylon weather protection
SPXCDASMPX XCD M20 316SS PROPANE IR LEL
SPXCDASMPXM XCD Gas Detector, 4-20 mA & Modbus output, ATEXIECExAsian approvals, 2xM20 entries, painted 316SS,
includes infrared propane sensor cartridge 0-100%LEL,
user selectable FSD between 20% and 100%LEL (10%LEL resolution), inc. nylon weather protection
SPXCDASMRX Gas Sensor: CH4: IR: 316SS: M20: ATEX: IECEX: AP
SPXCDASMRXM XCD Gas Detector, 4-20 mA & Modbus output, ATEXIECExAsian approvals, 2xM20 entries, painted 316SS,
includes infrared methane sensor cartridge 0-100%LEL,
user selectable FSD between 20% and 100%LEL (10%LEL resolution), inc. nylon weather protection SIGN IN
SPXCDASMTXF Sensepoint XCD Flam and IR Tx, ATEX, SS3 SIGN IN
SPXCDASMTXO XCD O2 Transmitter (without sensor), 4 to 20 mA output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS, includes nylon weather protection
SPXCDASMTXOM XCD O2 Transmitter (without sensor), 4 to 20 mA and Modbus output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS
SPXCDASMTXT XCD Toxic Transmitter (without sensor), 4 to 20 mA output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS, includes nylon weather protection
SPXCDASMTXTM XCD Toxic Transmitter (without sensor), 4 to 20 mA and Modbus output, ATEXIECExAsian approvals, 2 x M20 entries, painted 316SS
SPXCDULNB1 ULc-UL XCD CO2 IR 0-2%Vol LM25 SIGN IN
SPXCDULNCX ULc-UL XCD CO 0-500 LM25 SIGN IN
SPXCDULNCXM XCD ULC-UL 34IN NPT LM25 CO PPM MOD SIGN IN
SPXCDULNFX ULCSA XCD CAT0-100%LELCH4LM25 SIGN IN
SPXCDULNFXM XCD CAT 0-100% LEL LM25 MODBUS SIGN IN
SPXCDULNG1 XCD Gas Detector, includes hydrogen EC sensor cartridge 0 to 1000ppm SIGN IN
SPXCDULNHX ULc-UL XCD H2S 0-50 LM25 SIGN IN
SPXCDULNNX ULcULINMETRO approved SP XCD Nitrogen dioxide (NO2) 0-10 ppm (10 to 50 ppm, 5 ppm) with LM25, 34NPT Entry
SPXCDULNNXM XCD Gas Detector, 4 to 20 mA and Modbus output, ULc-ULINMETRO, 2 x 34 NPT entries, painted LM25,
includes nitrogen dioxide EC sensor cartridge 0 to 10ppm,
user selectable FSD between 10 and 50ppm (5 ppm resolution), nylon weather protection SIGN IN
SPXCDULNO1 ULc-UL XCD O2 25.0%VolLM25 SIGN IN
SPXCDULNO1M XCD ULC-UL 34IN NPT LM25 02 VV MOD SIGN IN
SPXCDULNPXM XCD Gas Detector, 4 to 20 mA and Modbus output, ULc-ULINMETRO, 2 x 34 NPT entries, painted LM25,
includes infrared propane sensor cartridge 0 to 100%LEL,
user selectable FSD between 20% and 100%LEL (10%LEL resolution), nylon weather protection
SPXCDULNRX UL XCD IR 0-100%LELCH4 LM25 SIGN IN
SPXCDULNRXM ULINMETRO approved SP XCD Flammable Methane (CH4) IR 0-100% LEL (20 to 100% LEL, 10% LEL) with LM25, 34NPT with Modbus
SPXCDULNTXFM XCD IR & Flammable Transmitter (without sensor), 4 to 20 mA and Modbus output, ULc-ULINMETRO, 2 x 34 NPT entries, painted LM25,
includes nylon weather protection, includes nylon weather protection SIGN IN
SPXCDUSNB1 ULcULINMETRO approved SP XCD Carbon dioxide (CO2) IR 0-2% Vol. with 316SS 34NPT Entry SIGN IN
SPXCDUSNB1M ULcULINMETRO approved SP XCD Carbon dioxide (CO2) IR 0-2% Vol. with 316SS, 34NPT Entry with Modbus
SPXCDUSNCX ULcULINMETRO approved SP XCD Carbon monoxide (CO) 0-300 ppm (100 to 1000 ppm, 100 ppm) with 316SS 34NPT Entry
SPXCDUSNCXM ULcULINMETRO approved SP XCD Carbon monoxide (CO) 0-300 ppm (100 to 1000 ppm, 100 ppm) with 316SS, 34NPT Entry
SPXCDUSNFX ULCSAINMETRO approved SP XCD Flammable CAT 0-100% LEL (20 to 100% LEL, 10% LEL) with 316SS, 34NPT Entry
SPXCDUSNFXM ULCSAINMETRO approved SP XCD Flammable CAT 0-100% LEL (20 to 100% LEL, 10% LEL) with 316SS 34NPT Entry with Modbus
SPXCDUSNG1 ULcULINMETRO approved SP XCD Hydrogen (H2) 0-1000 ppm with 316SS 34NPT Entry
SPXCDUSNG1M ULcULINMETRO approved SP XCD Hydrogen (H2) 0-1000 ppm with 316SS, 34NPT Entry with Modbus SIGN IN
SPXCDUSNHX ULcULINMETRO approved SP XCD Hydrogen sulfide (H2S) 0-50 ppm (10.0 to 100.0 ppm, 1 ppm) with 316SS 34NPT Entry
SPXCDUSNHXM ULcULINMETRO approved SP XCD Hydrogen sulfide (H2S) 0-50 ppm (10.0 to 100.0 ppm, 1 ppm) with 316SS, 34NPT Entry with Modbus
SPXCDUSNNX ULcULINMETRO approved SP XCD Nitrogen dioxide (NO2) 0-10 ppm (10 to 50 ppm, 5 ppm) with 316SS 34NPT Entry
SPXCDUSNNXM ULcULINMETRO approved SP XCD Nitrogen dioxide (NO2) 0-10 ppm (10 to 50 ppm, 5 ppm) with 316SS, 34NPT Entry with Modbus
SPXCDUSNO1 ULcULINMETRO approved SP XCD Oxygen (O2) 25.0% Vol with 316SS 34NPT Entry
SPXCDUSNO1M ULcULINMETRO approved SP XCD Oxygen (O2) 25.0% Vol with 316SS, 34NPT Entry with Modbus
SPXCDUSNPX XCD 34IN NPT 316SS PROPANE IR LEL SIGN IN
SPXCDUSNPXM XCD 34IN NPT316SS PROPANE IRLEL MOD SIGN IN
SPXCDUSNRX XCD ULC-UL 34IN NPT 316SS CH4 IR LEL SIGN IN
SPXCDUSNRXM ULINMETRO approved SP XCD Flammable Methane (CH4) IR 0-100% LEL (20 to 100% LEL, 10% LEL) with 316SS, 34NPT with Modbus
SPXCDUSNTXFM XCD IR & Flammable Transmitter (without sensor), 4 to 20 mA and Modbus output, ULc-ULINMETRO, 2 x 34 NPT entries, painted 316SS,
includes nylon weather protection SIGN IN
SPXCDUSNTXO XCD O2 Transmitter (without sensor), 4 to 20 mA output, ULc-ULINMETRO, 2 x 34 NPT entries, painted 316SS,
includes nylon weather protection SIGN IN
SPXCDUSNTXT XCD Toxic Transmitter (without sensor), 4 to 20 mA output, ULc-ULINMETRO, 2 x 34 NPT entries, painted 316SS,
includes nylon weather protection SIGN IN
SPXCDXSCXSS Carbon Monoxide 0-300ppm (100 to 1000ppm: 100ppm) SIGN IN
SPXCDXSG1SS Hydrogen 0-1000ppm only SIGN IN
SPXCDXSHXSS Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm: 1ppm) SIGN IN
SPXCDXSNXSS Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm: 5ppm) SIGN IN
SPXCDXSO1SS氧气 25.0% vv 仅此登录
Sensepoint XCD Detector ATEX/IECEx/KTL, PA & GB (Aluminium LM25)*
SPXCDALMFX ATEX/IECEx/KTL/PA and GB approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry
SPXCDALMRX ATEX/IECEx/KTL/PA and GB approved SP XCD (Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry
SPXCDALMPX ATEX/IECEx/KTL/PA and GB approved SP XCD (Propane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry
SPXCDALMO1 ATEX/IECEx/KTL/PA and GB approved SP XCD Oxygen 25.0%/Vol. with LM25, M20 Entry
SPXCDALMHX ATEX/IECEx/KTL/PA and GB approved SP XCD Hydrogen Sulphide 0-50.0ppm (10.0 to 100.0ppm, 1.0ppm) with LM25, M20 Entry
SPXCDALMCX ATEX/IECEx/KTL/PA and GB approved SP XCD Carbon Monoxide 0-300ppm (100-1000ppm, 100ppm) with LM25, M20 Entry
SPXCDALMG1 ATEX/IECEx/KTL/PA and GB approved SP XCD Hydrogen 0-1000ppm with LM25, M20 Entry
SPXCDALMNX ATEX/IECEx/KTL/PA and GB approved SP XCD Nitrogen Dioxide 0-50.0ppm (10.0-50.0, 5.0ppm) with LM25, M20 Entry
SPXCDALMB1 ATEX/IECEx/KTL/PA and GB approved SP XCD Carbon Dioxide IR 0-2.00%Vol. with LM25, M20 Entry
Sensepoint XCD Detector ATEX/IECEx/KTL, PA & GB (316 Stainless Steel)*
SPXCDASMFX ATEX/IECEX and AP approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry
SPXCDASMRX ATEX/IECEX and AP approved SP XCD (Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry
SPXCDASMPX ATEX/IECEX and AP approved SP XCD (Propane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry
SPXCDASMO1 ATEX/IECEX and AP approved SP XCD Oxygen 25.0%/Vol. with 316SS, M20 Entry
SPXCDASMHX ATEX/IECEX and AP approved SP XCD Hydrogen Sulphide 0-50.0ppm (10.0 to 100.0ppm, 1.0ppm) with 316SS, M20 Entry
SPXCDASMCX ATEX/IECEX and AP approved SP XCD Carbon Monoxide 0-300ppm (100-1000ppm, 100ppm) with 316SS, M20 Entry
SPXCDASMG1 ATEX/IECEX and AP approved SP XCD Hydrogen 0-1000ppm with 316SS, M20 Entry
SPXCDASMNX ATEX/IECEX and AP approved SP XCD Nitrogen Dioxide 0-50.0ppm (10.0-50.0, 5.0ppm) with 316SS, M20 Entry
SPXCDASMB1 ATEX/IECEX and AP approved SP XCD Carbon Dioxide IR 0-2.00%Vol. with 316SS, M20 Entry
Optional Accessories
S3KCAL Calibration cup
SPXCDCC Collecting cone for use with lighter than air gases
SPXCDDMK Duct mounting kit
SPXCDHMANEN Hard copy manual in English
SPXCDMTBR Mounting bracket (inc. bolts, nuts, brackets)
SPXCDSDP Sunshade/Deluge Protection
00780-A-0100 ATEX approved junction box (Explosion-proof)

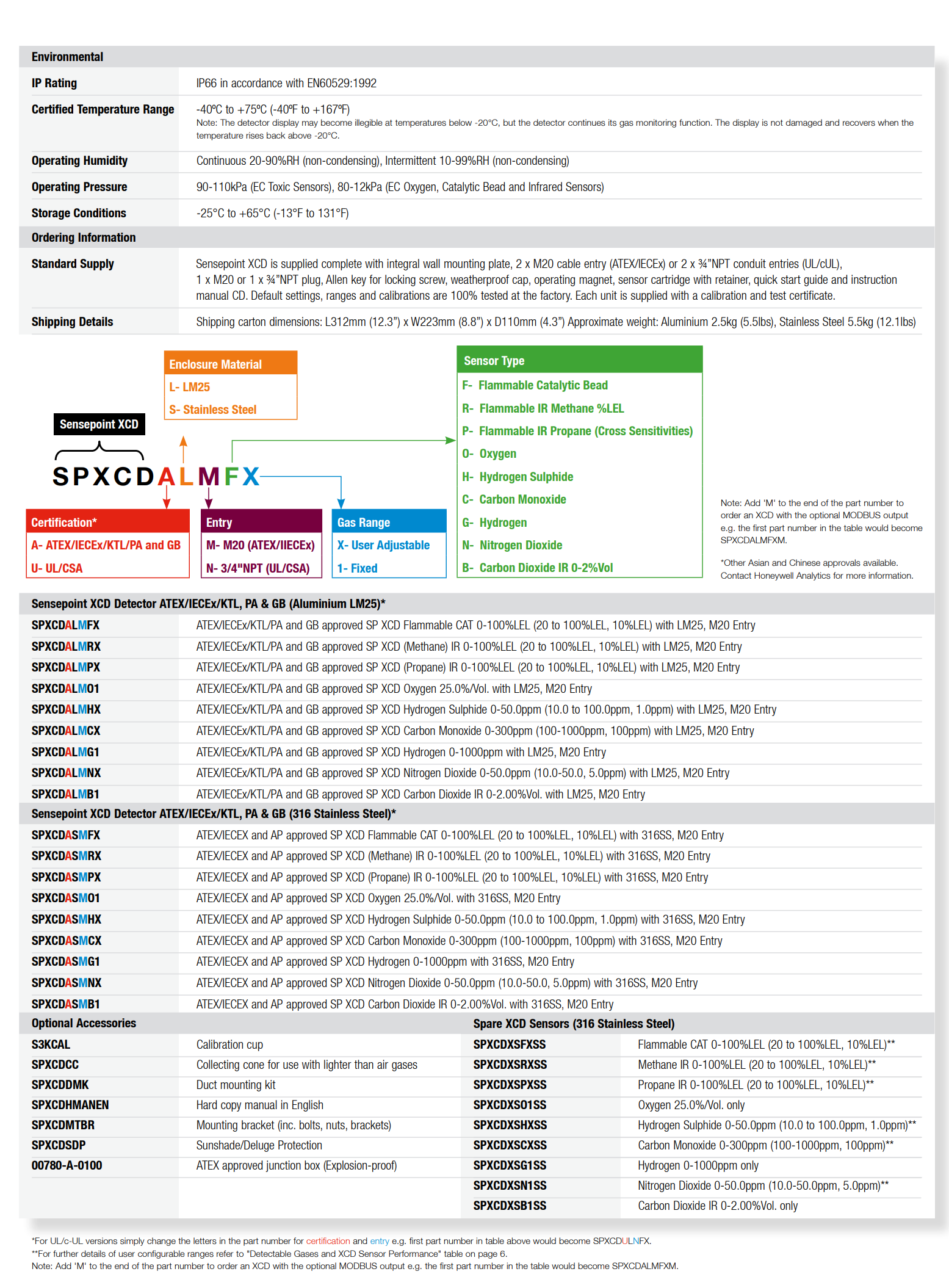

SPXCD ALMFX
Sensepoint XCD
Certification*
A- ATEX/IECEx/KTL/PA and GB
U- UL/CSA
Entry
M- M20 (ATEX/IIECEx)
N- 3/4"NPT (UL/CSA)
Gas Range
X- User Adjustable
1- Fixed
Enclosure Material
L- LM25
S- Stainless Steel
Sensor Type
F- Flammable Catalytic Bead
R- Flammable IR Methane %LEL
P- Flammable IR Propane (Cross Sensitivities)
O- Oxygen
H- Hydrogen Sulphide
C- Carbon Monoxide
G- Hydrogen
N- Nitrogen Dioxide
B- Carbon Dioxide IR 0-2%Vol
Note: Add 'M' to the end of the part number to
order an XCD with the optional MODBUS output
e.g. the first part number in the table would become
SPXCDALMFXM.
*Other Asian and Chinese approvals available.
Contact Honeywell Analytics for more information.
Spare XCD Sensors (316 Stainless Steel)
SPXCDXSFXSS Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL)**
SPXCDXSRXSS Methane IR 0-100%LEL (20 to 100%LEL, 10%LEL)**
SPXCDXSPXSS Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL)**
SPXCDXSO1SS Oxygen 25.0%/Vol. only
SPXCDXSHXSS Hydrogen Sulphide 0-50.0ppm (10.0 to 100.0ppm, 1.0ppm)**
SPXCDXSCXSS Carbon Monoxide 0-300ppm (100-1000ppm, 100ppm)**
SPXCDXSG1SS Hydrogen 0-1000ppm only
SPXCDXSN1SS Nitrogen Dioxide 0-50.0ppm (10.0-50.0ppm, 5.0ppm)**
SPXCDXSB1SS Carbon Dioxide IR 0-2.00%Vol. only
